Creating a Circular Progressbar / Timer

Question

I'd like to know how to make a circular progressbar or timer-type effect. Basically, given a value [0..1], it will "fill in" a portion of a circle on the GUI that circularly represents the value. So if I give it 0.33, it should fill in 1/3 of the circle, and so on. These types of GUI elements are useful for timers and that sort of thing.

I really can't think of a way to do this off the top of my head, so if anyone can either post some code or point me in the right direction, that would be awesome. :)

Answer 1

Best Answer

Answer by Eric5h5 · Apr 09, 2010 at 05:38 PM

The easiest way is to use an alpha gradient texture:

innergradient

Which is used as a mask in an alpha test (transparent cutout) shader. You change the _Cutoff property to indicate which percentage should be used, ranging from 0..1. This code would make the bar empty when the mouse pointer is on the right side of the screen, going up to full as you move the mouse pointer to the left side (see demo):

function Update () {
   renderer.material.SetFloat("_Cutoff", Mathf.InverseLerp(0, Screen.width, Input.mousePosition.x));
}

In the demo, there are three textures; one for the regular graphics (using normal alpha for nice anti-aliasing), one for the green health bar (using alpha cutoff), and a solid red behind the first two that shows through where there's no green. The non-alpha part of the health bar texture is just a block of solid green, although it doesn't have to be...you can make it look like whatever you want of course.

alt text

A unitypackage of this is available here.

Add comment · Show 40 · Share

Ashkan_gc · May 03, 2010 at 04:26 PM 0

Share

great answer eric! do you use shaders much? do you know shader program$$anonymous$$g?

Eric5h5 · May 05, 2010 at 08:48 PM 0

Share

A little, but you don't need to know any shader program$$anonymous$$g for this, just use a transparent cutout shader.

Wolfram · Aug 04, 2010 at 05:19 PM 0

Share

Just use material instances to be able to change the cutoff value for each button individually.

Eric5h5 · Aug 04, 2010 at 06:33 PM 0

Share

Indeed, material instances is far simpler than extra cameras/rendertextures.

Eric5h5 · Aug 05, 2010 at 04:59 AM 0

Share

@$$anonymous$$olix: Oh, OnGUI, sorry. OnGUI isn't really suited for this, so I wouldn't use it.

Show more comments

Answer 2

Answer by gilley033 · Dec 16, 2014 at 08:55 PM

FYI this can be done very easily with the new UI. All you need is a sprite with a circular texture (I've provided one). Add an Image object to your scene, and the provided sprite as the Source Image, and set the Image Type to Filled.

You can access the fill amount via scripting by getting a reference to the Image component (make sure to add import or add a using statement for UnityEngine.UI).

Enjoy! alt text


Add comment · Share

Answer 3

Answer by Noob_Vulcan · Aug 09, 2015 at 10:09 AM

2019 ...

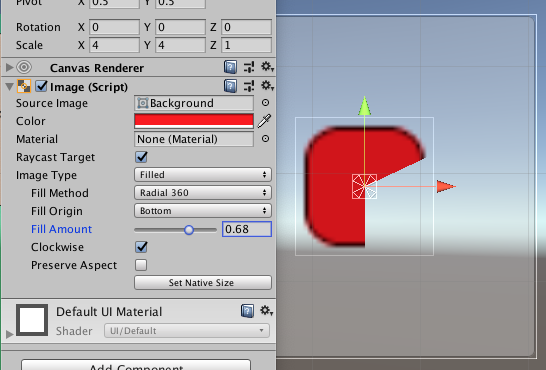

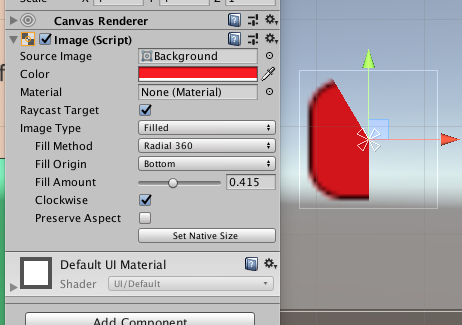

This is now built in to Unity. Image -> "Filled" -> Radial 360.

Just change "Fill Amount" ( .fillAmount in script).

alt text

Use any image you wish.

[1]: http://www.unityrealm.com/how-to-make-a-circular-progress-bar-in-unity-ui



Add comment · Share

Answer 4

A more mathematical approach to this problem is:

Render lines that correspond to the part of your circle you want each time.

Here's what I 've done using the GL class:

 using UnityEngine;
 using System.Collections;

 public class timer : MonoBehaviour
     {
     //assign a material for your lines
     public Material lineMat;
     public float time;
     private float _timer;
     private float length=0.5f;
     private Vector3 timerpos;
     float x,y,delta;

     void Start()
         {
         //Initialize timerPos here
         delta = 0.02f;
         CreateMat ();
         }

     void Update()
         {
         if (time - _timer > 0)
         _timer += Time.deltaTime;
         }

     void OnPostRender()
         {
         if (time - _timer > 0)
             {
             for (float angle = 0; angle <(_timer/time) * 2*Mathf.PI; angle+=delta)
                 {
                 x = length * Mathf.Cos (-angle + Mathf.PI / 2 );
                 y = length * Mathf.Sin (-angle + Mathf.PI / 2 );
                 lineMaterial.SetPass(0);
                 GL.Begin (1);
                 GL.Color (Color.white);
                 GL.Vertex3 (timerpos.x, timerpos.y, 0);
                 GL.Vertex3 (timerpos.x + x,timerpos.y + y, 0);
                 GL.End ();
                 }
             }
         }
     }
 // end

For anti-clockwise

 x = length * Mathf.Cos (angle + Mathf.PI / 2 );
 y = length * Mathf.Sin (angle + Mathf.PI / 2 );

The Mathf.PI / 2 is added so that the timer starts from 12 'o clock

P.S I am not sure if this code is so fast or not but it gets the work done

Answer 5

Answer by ThomasKang · Oct 08, 2020 at 10:03 PM

Unity has since added the Sprite Mask component which works very similarly to the alpha cutout shader @Eric5h5 posted. https://docs.unity3d.com/Manual/class-SpriteMask.html

Add comment · Share
