Meshes imported from Blender aren't scaled correctly

Question

When I try to import meshes from Blender, they are not imported correctly.

For example, when I try to import the Blender default cube into Unity, it seems it is bigger than the Unity default cube (I made sure to reset the Unity cube, so its scale is 1)

When I look at its transform, it was automatically scaled by 100.

When I reset it, it is actually way tinier than the Unity default cube.

I made sure that Blender is configured to use the metric system, not the imperial one, so I am not sure what is going wrong here.

I noticed, that there is an import setting in Unity, to automatically convert units, which is enabled by default:

When I UNCHECK this option, the mesh is still imported incorrectly, but this time it is only twice as big as the Unity default mesh.

Now when I scale the Blender cube by 0.5, it is the same size as the Unity cube.

What is going wrong here?

I am using Unity and Blender on Ubuntu 20.04 with Unity 2021 LTS

Answer 1

Answer by mmak28_6 · 3 days ago

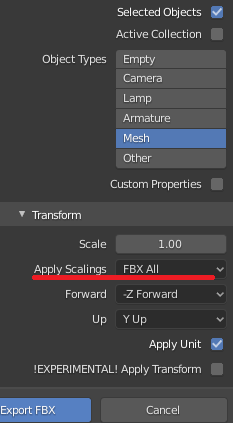

If you set Apply Scalings to 「FBX All」 in the blender fbx export settings, the scale will be set to 1.

alt text

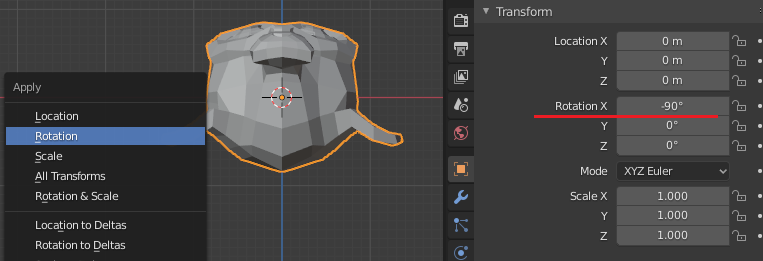

As an aside, here is a workaround for the problem of Rotation.x=-90
First, select the object and enter -90 for the object's rotation value X.
Apply this rotation (Ctrl+A -> Apply -> Rotation). alt text

Make sure that the Rotation is now 0.

Finally, enter 90 for Rotation.x. Do not apply this.



Add comment · Show 3 · Share

Ilmu011 · 3 days ago 0

Share

I tried to export the object with FBX all.

Now, at least when the convert units option is checked, it isn't scaled or rotated arbitrarily, but it is still too big. I still have to scale it by 0.5 to match the Unity default cube.

MickyX Ilmu011 · 3 days ago 0

Share

If you are trying to export the default cube from blender, that cube is defaulted to 2x2x2 the default in unity is 1x1x1 which is why you need to scale it to 0.5 to get it the same size.

Adjust the size in blender prior to export.

Ilmu011 MickyX · 3 days ago 0

Share

I didn't know that. Thanks for the info.
